CSCR Series Single-Phase Asynchronous Motor

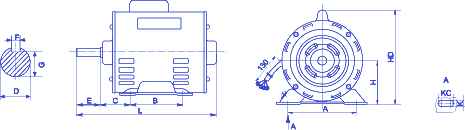

Overall And Mounting Dimension
Frame
Mounting & Overall dimension
A
B
C
D
E
F
G
H
K
KC
L
HD
71
112
76.2
45
14
40
4
11.5
67
10
25
240
180
80
125
76
50
16
50
5
13
76
10
25
270
195
90
140
125
56
19
50
6
15.5
89
10
25
315
215
B56-3/4"
123.8
76.2
61.2
19.05
50.08
4.76
16.40
88.9
10
25
315
219
PERFORMANCE SPECIFICATIONS
Type
Output
Voltage
(V)
Current
(A)
Freq.
(Hz)
Speed
(r/min)
Tstart/Tn
Ist/In
Tmax/Tn
kW
HP
CSCR7112
370
1/2
220
3.4
50
2830
2.5
21
1.8
CSCR7122
550
3/4
220
4.7
50
2830
2.5
29
1.8
CSCR7114
250
1/3
220
3.2
50
1420
2.5
15
1.8
CSCR7124
370
1/2
220
4.2
50
1420
2.5
21
1.8
CSCR8012
750
1
220
6
50
2840
2.5
37
1.8
CSCR8022
1100
1.5
220
8.4
50
2840
2.5
60
1.8
CSCR8014
550
3/4
220
5.6
50
1420
2.5
29
1.8
CSCR8024
750
1
220
6.8
50
1420
2.5
37
1.8
CSCR90S2
1500
2
220
11.3
50
2850
2.5
80
1.8
CSCR90L2
2200
3
220
16.3
50
2850
2.5
120
1.8
CSCR90S4
1100
1.5
220
9.4
50
1435
2.5
60
1.8
CSCR90L4
1500
2
220
12.5
50
1435
2.5
80
1.8
Overall
And Mounting Dimension
