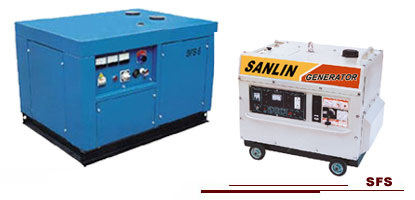

Products Showroom - SFS Series Low Noise Single-Phase Diesel Gen-sets

SFS series generating sets consists of well-known diesel engine and generator, it is well designed by introducing international advanced technology. They possess the advantages of advaned design, compact construction, low noise, easy maintenance, etc. They are applicable for using in many places such as telecom, bank, mantion, airport where noise pollution are prohibited.


	GF Series Three-Phase Diesel Gen-sets SF Series Single-Phase Diesel Gen-sets GFS Series Low Noise Three- Phase Diesel Gen-sets SFS Series Low Noise Single- Phase Diesel Gen-sets GSa Series Welder&Generator Double-Use Machine DF Series Air-Cooled Diesel Generating Sets MTC Series Gasoline Engine Generating Sets Engine-Driven Pumps

	General Type Generators Generating Sets

Technical Data

Type		SFS-5	SFS-7.5	SFS-10	SFS-10	SFS-12	SFS-15	SFS-20	SFS-24	DXS5000
Rated Power(kW)		5	7.5	10	10	12	15	20	24	5
Rated Power(kVA)		5	7.5	10	10	12	15	20	24	5
Engine	Type	S1100F	S1110F	S1115F	295D	2100D	395D	495D	495D	HL186F
	12h Power(kW/hp)	11/15	13.2/18	14.7/20	13.24/18	14.7/20	20.6/28	26.5/36	26.5/36	5.6/7.7
	Starting Mode	12V Electric Starting								Electric Starting
	cooling Mode	Closed Circulation Water Cooling								Air-cooling
Generator	Type	ST-5	ST-7.5	ST-10	ST-10	ST-12	ST-15	ST-20	ST-24	STW-5
	Rated Power(kW)	5	7.5	10	10	12	15	20	24	5
	Rated Current(A)	21.7/43.5	32.6/65.2	43.5/87	43.5/87	52.1/104	65.1/130	87/140	104/208	21.7/43.5
	Rated Voltage(V)	230/115								230/115
	Rated Freq.(Hz)	50								50
Set	Rated Speed(r/min)	1500								3000
	Noise(dB)	<80 dB (7m away from the sets)								70dB
	Length(cm)	120	120	120	160	170	180	200	200	90.5
	Width(cm)	90	90	90	90	90	90	90	90	52
	Height(cm)	80	80	80	100	100	100	112	112	68
	N.W(kg)	400	420	450	510	560	728	1050	1100	165
